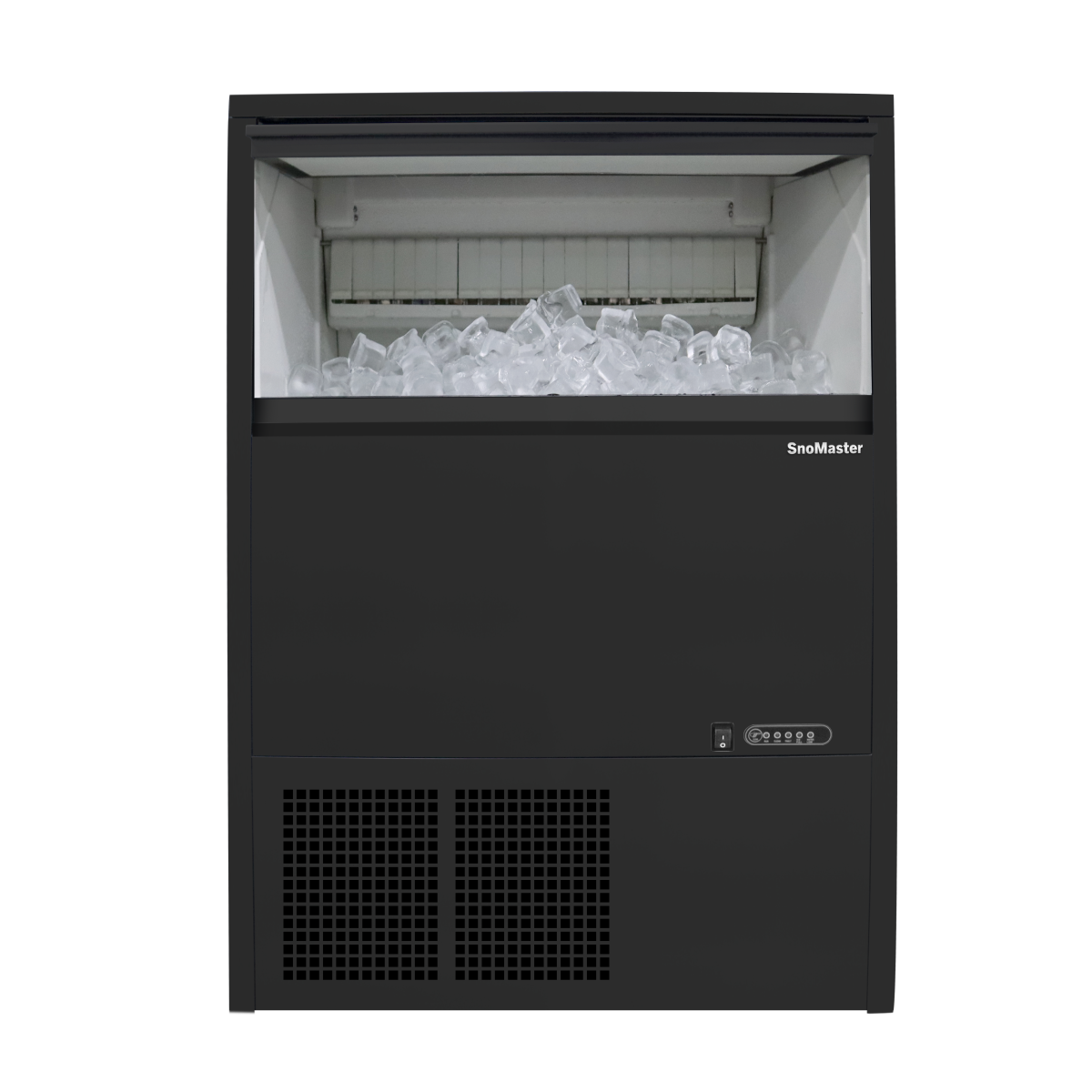

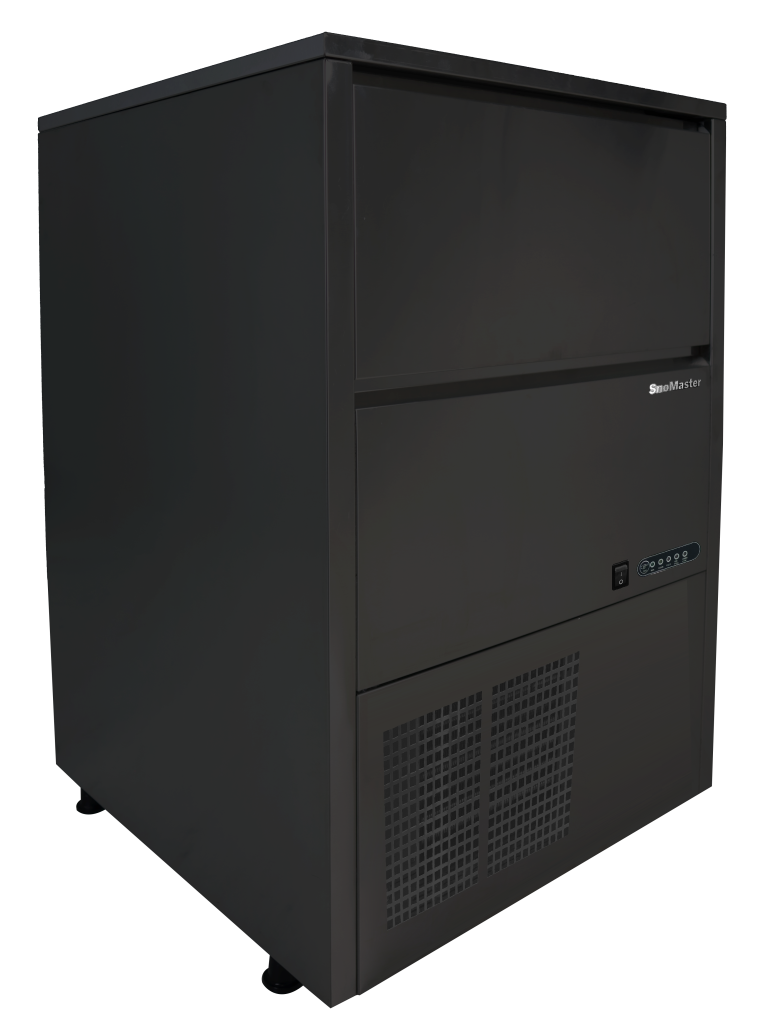

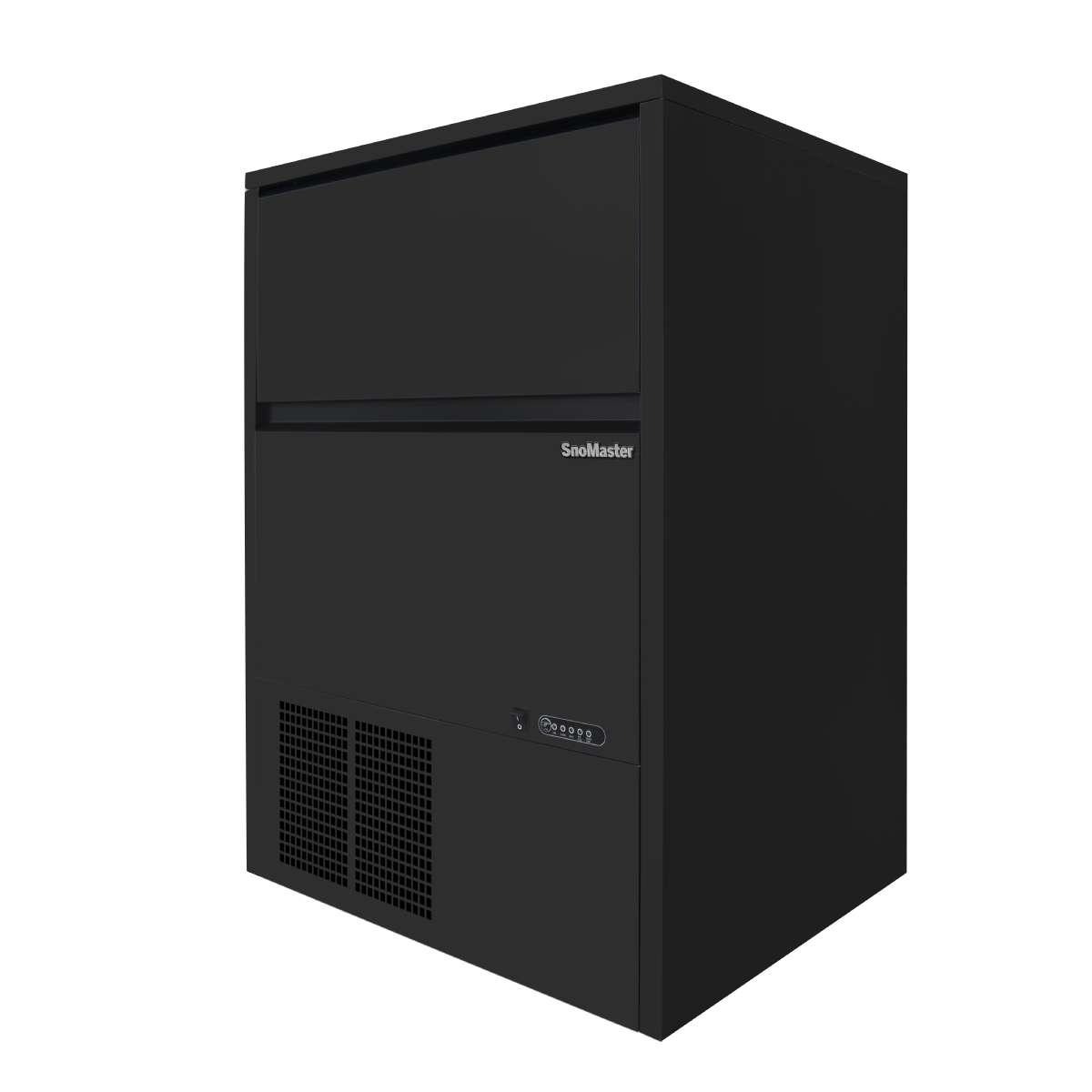

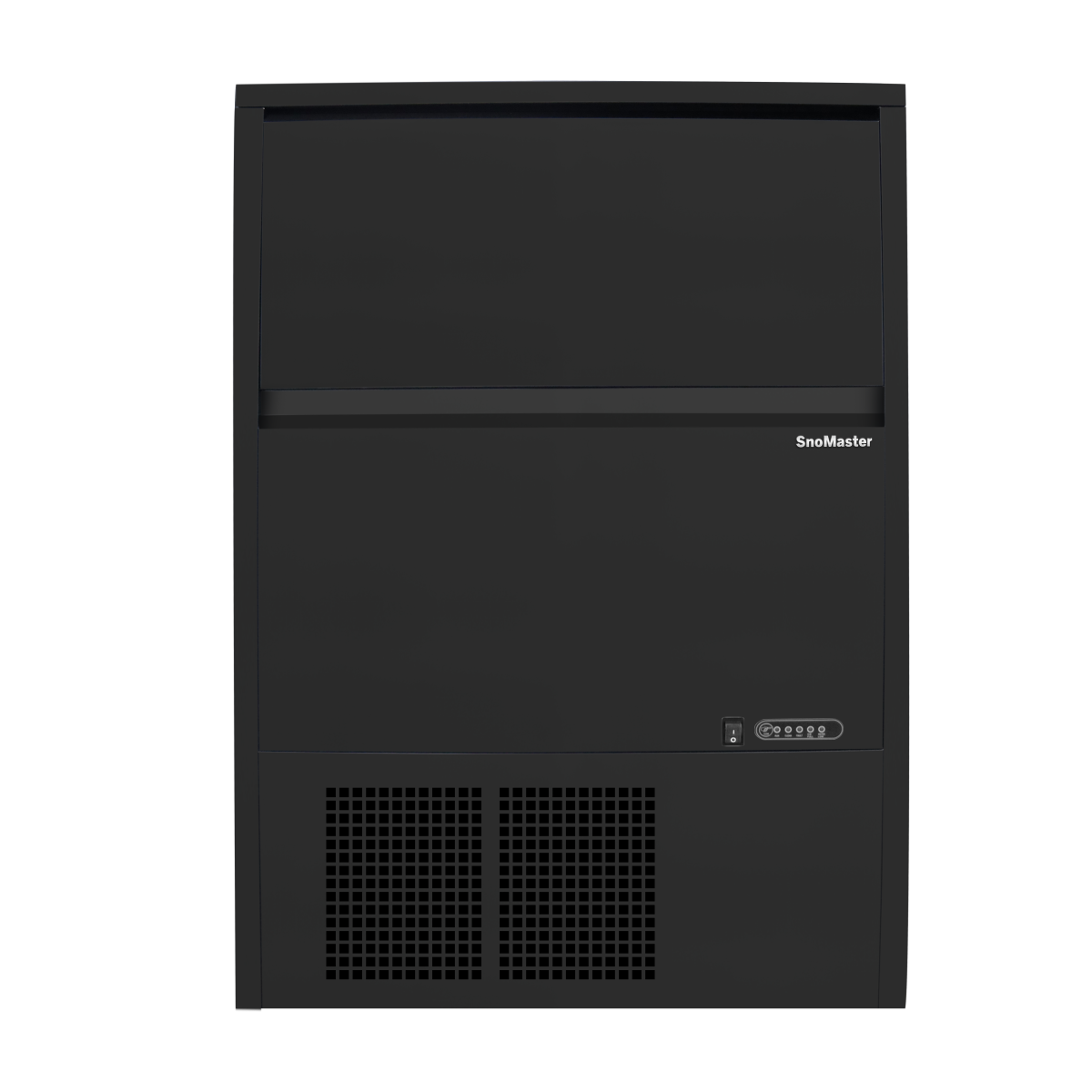

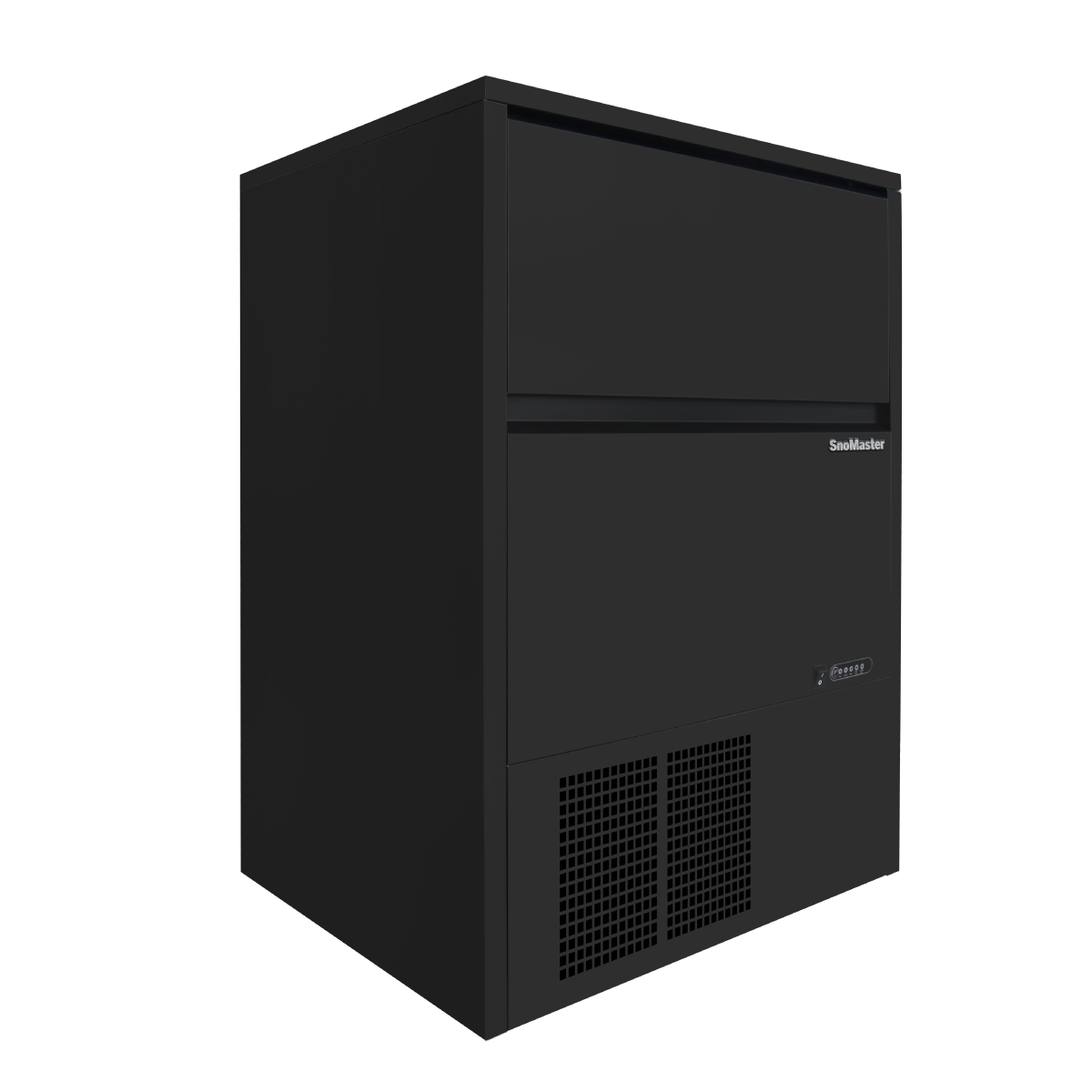

45Kg/24Hr Plumbed-in Gourmet Type Ice-Maker - Black
Designed for homes and entertainment spaces that need a steady supply of premium ice, the SnoMaster – 45Kg/24Hr Plumbed-in Gourmet Type Ice-Maker – Black (SMIC-45) delivers 44 clear, gourmet ice cubes per cycle and stores up to 25kg. Ideal for cocktails and spirits, it features an external LED display with on/off switch plus ice full and water low sensors for reliable operation. The spray system supports efficient production, while the gravity-fed drain system keeps maintenance simple. Installation is easy with the included pipes, water filter cartridge, and ice scoop. Designed for African conditions, the SMIC-45 brings professional-quality ice to elevated home entertaining.
Product Features:
Ice Type: Gourmet Ice - Size (mm): (H) 33 (W) 33 (D) 33
Ice Full & Water Low Sensor
44 Gourmet Ice Cubes Per Cycle

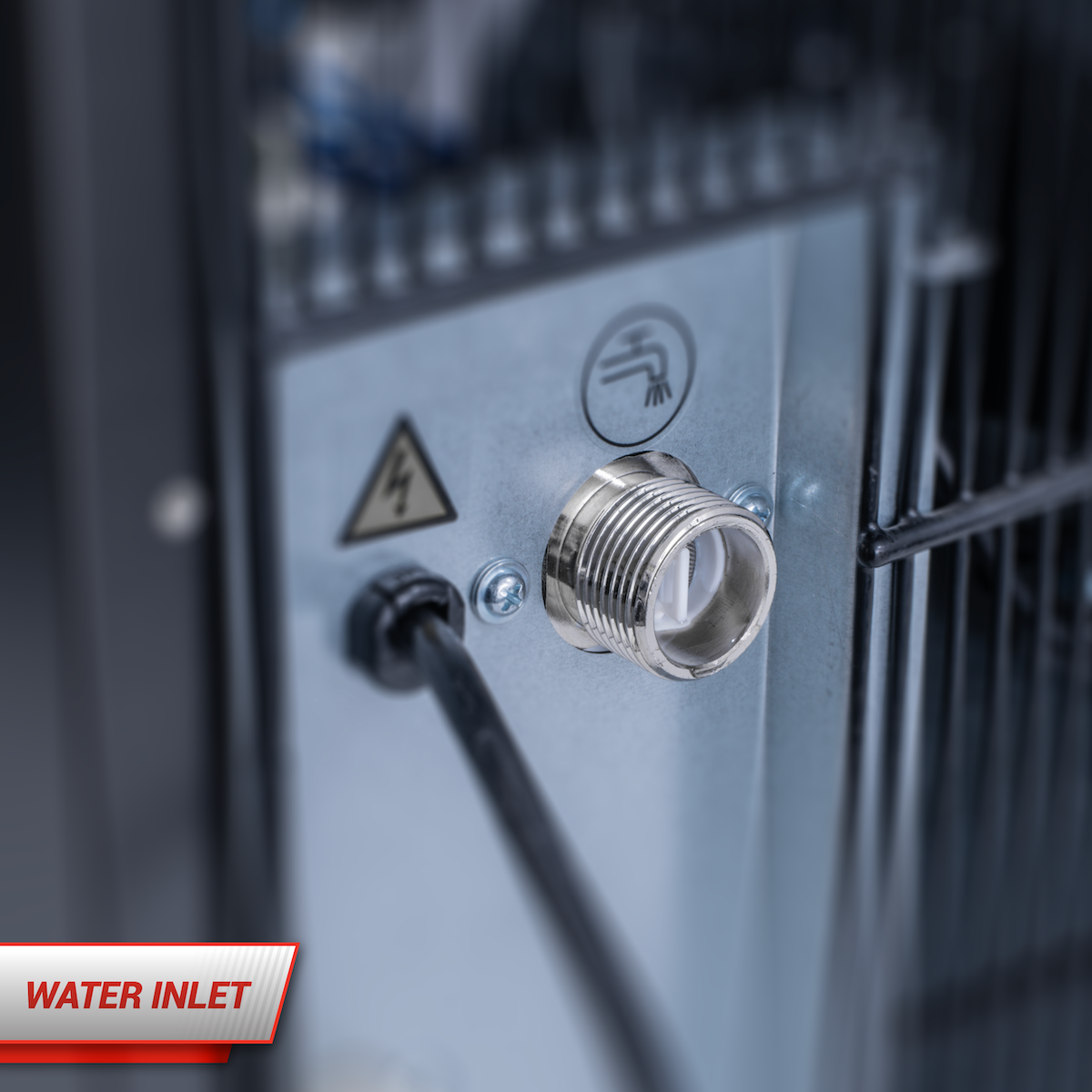

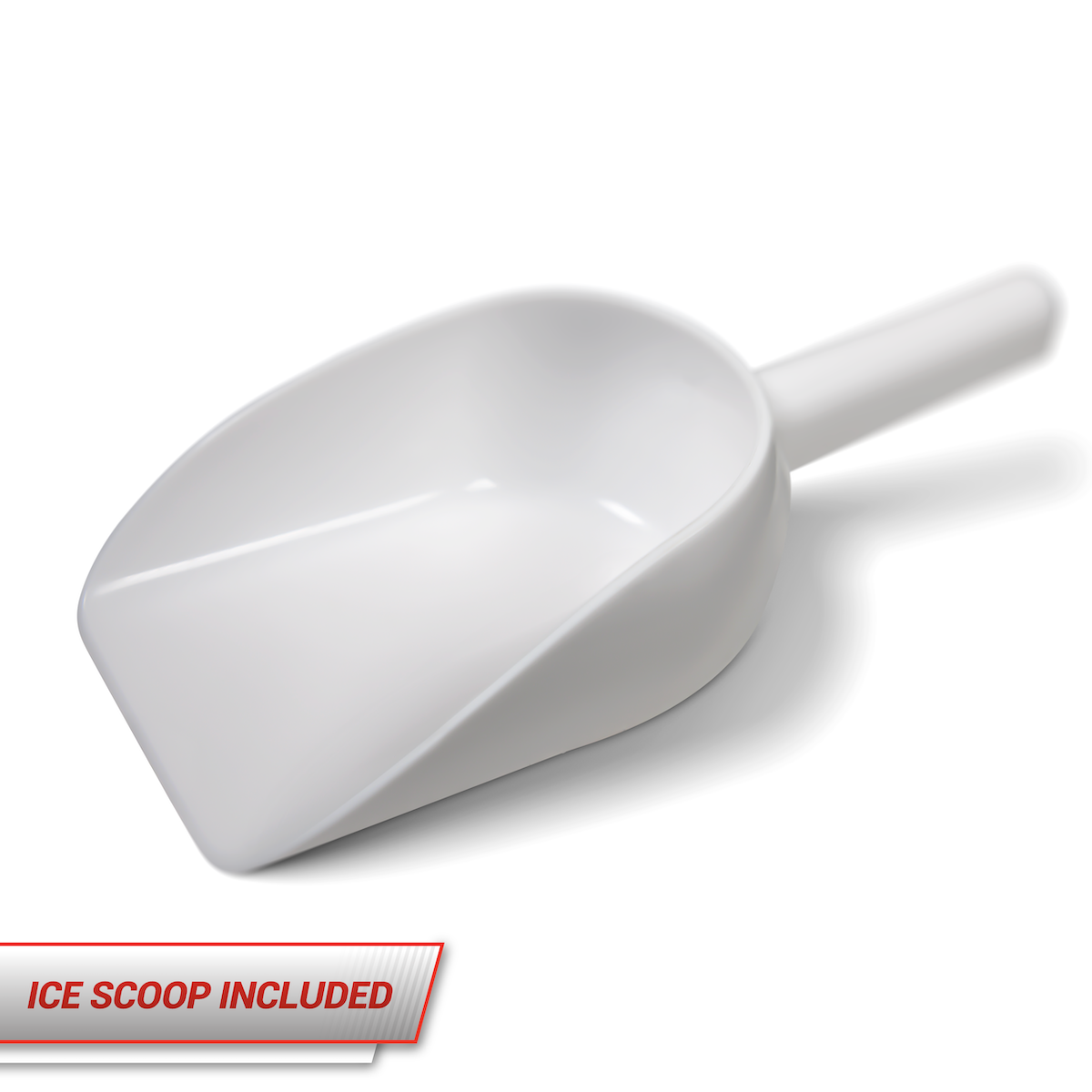

Includes: Ice Scoop, Disposable Water Filter Cartridge, Inlet and Outlet Pipes
25Kg Ice Storage Bin

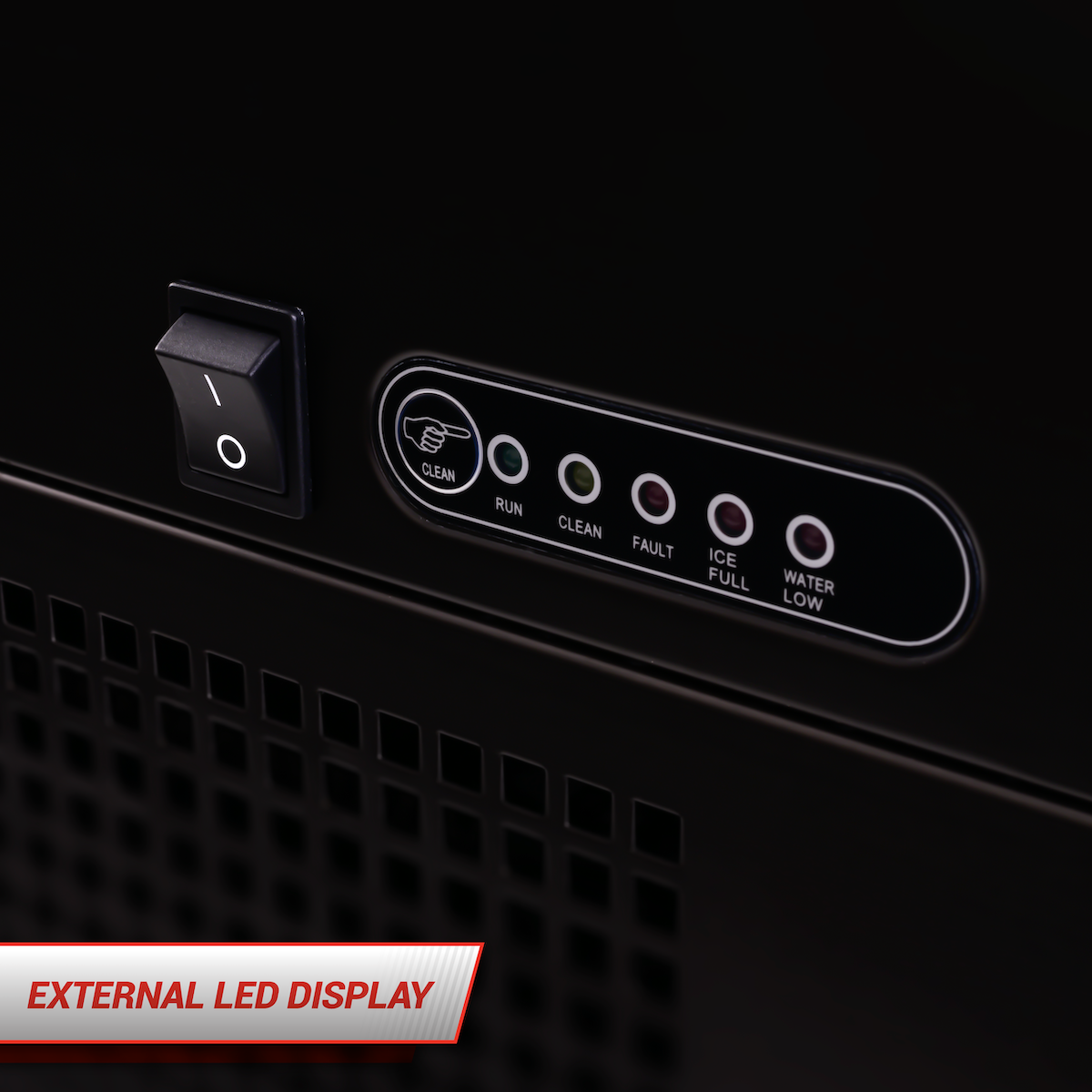

External LED Display With On/Off Switch

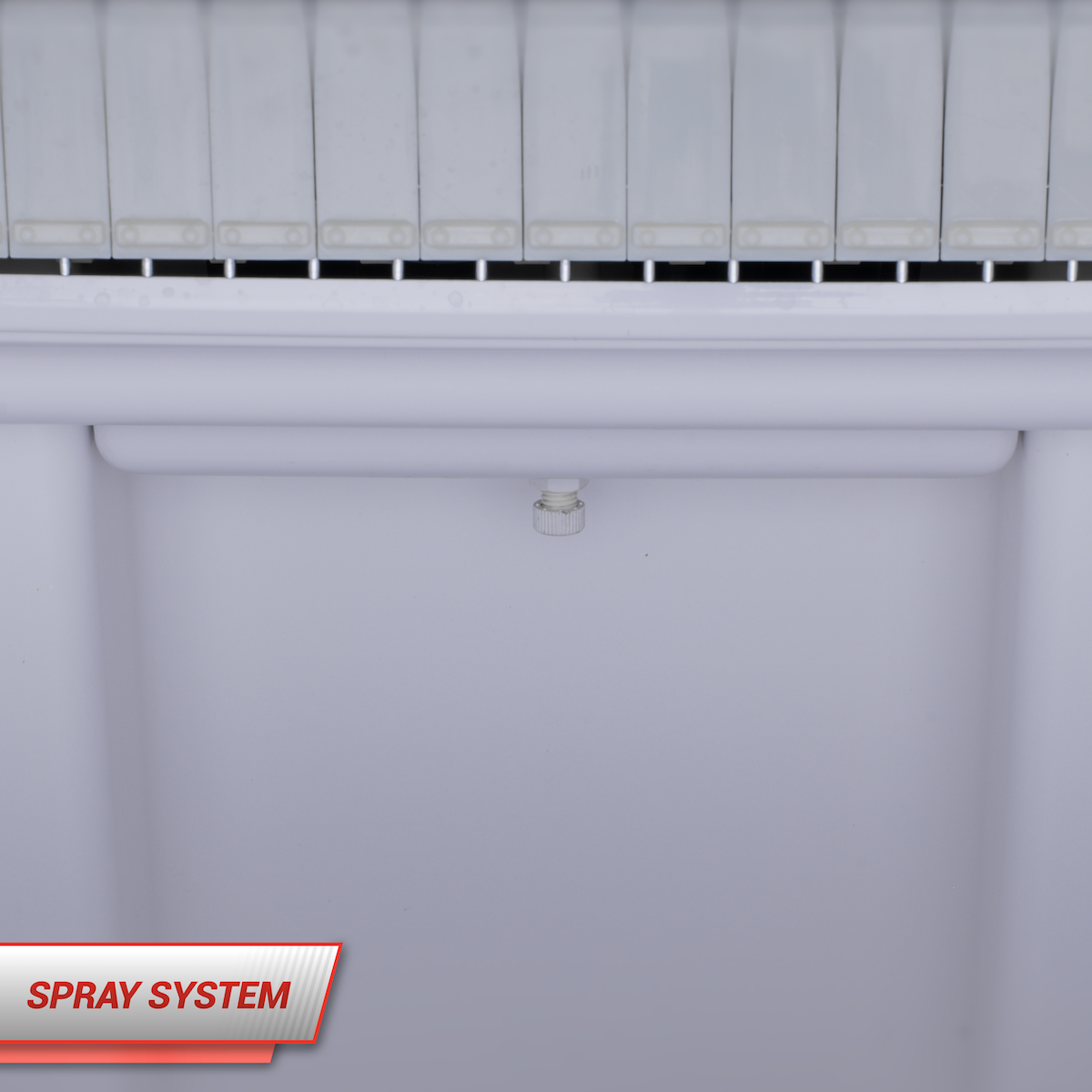

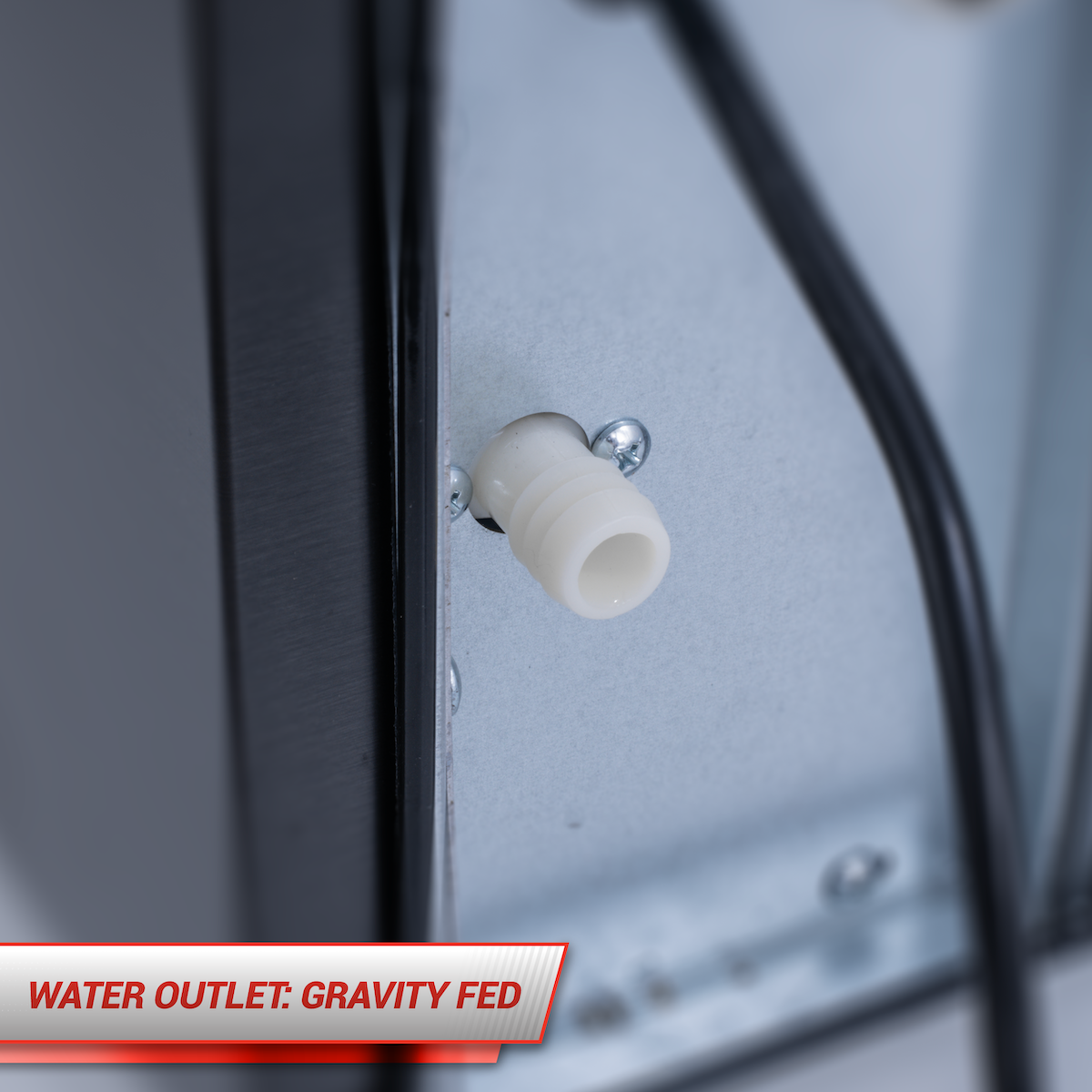

Spray System & Gravity-Fed Drain System
Specifications
-
Assembled Dimensions (mm): (H) 835 (W) 608 (D) 720
-
Packaged Dimension (mm): (H) 870 (W) 655 (D) 755
-
Capacity: 45Kg/24h
-
Net Weight (Kg): 56.5Kg
-
Colour: Black
-
Ice Type/Size (mm): Gourmet Ice | Size (mm): H 33 × W 33 x D 33
-
Total Input Power Power: 630W
-
Rated Current (AC/DC): 3.3A
-
Voltage: 220V - 240V / 50Hz
-
Design Criteria: Designed For African Conditions
-

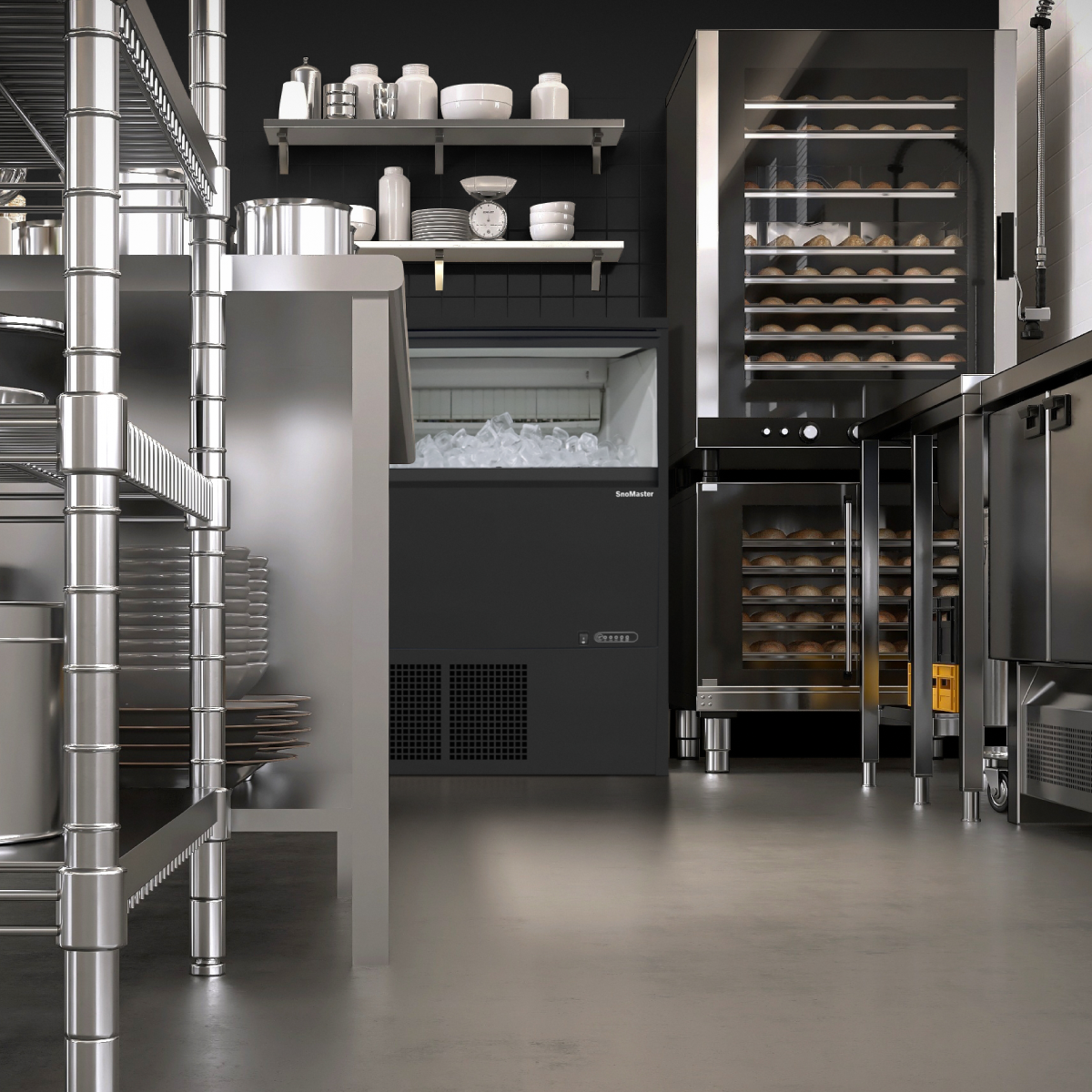

Suggested Applications: Restaurants, Bars, Lodges, Cocktail Lounges & Hospitality Kitchens
-
Note: We recommend a certified plumber installs your plumbed-in ice-maker. These units have a gravity-fed drain point, thus the drain point must be lower than the ice-maker. Ensure to keep the unit well ventilated and clean the condenser regularly. *To maximize the ice-making performance of your plumbed-in ice-maker, it’s ideal to have it in a steady environment with a 20°C ambient temperature and 10°C water temperature. While your ice-maker can handle higher temperatures, these conditions ensure peak production capacity. Adjustable Leveling Feet (+/- 20mm)
Product Display
Product Media
Frequently Asked Questions
FAQ
The fault indicator light flashes - 1 flash
- The fault indicator light flashes once repeatedly.
- Poor connection to the ambient temperature sensor. The wiring to the ambient temperature sensor may be loose or faulty.
- Ambient temperature sensor malfunction.
- Replace the ambient temperature sensor if necessary.
The fault indicator light flashes -2 flashes
- The fault indicator light flashes twice repeatedly.
- Poor connection to the evaporator sensor. The wiring to the evaporator sensor may be loose or faulty.
- Evaporator sensor malfunction. Replace the evaporator sensor if necessary.
The fault indicator light flashes - 3 flashes
- The fault indicator light flashes three times repeatedly.
- Poor connection to the ice full sensor. The wiring to ice full sensor may be loose or faulty.
- Ice full sensor malfunction. Replace the ice full sensor if necessary.
The fault indicator light flashes - 4 flashes
- The fault indicator light flashes four times repeatedly.
- Poor connection to the condenser sensor. The wiring to condenser sensor may be loose or faulty.
- Condenser sensor malfunction. Replace the condenser sensor if necessary.
Fault indicator light - constant light
- The fault indicator light remains on constantly.
- Magnetic valve failure. Check if the magnetic valve operates correctly during ice removal and that ice drops smoothly.
- Water pump failure. Inspect the water pump to ensure it is functioning properly.
- Insufficient water supply. Check the water supply. If normal, restart the ice-maker.
- Inlet valve malfunction. Inspect the inlet valve and replace the water level sensor or inlet valve if needed.
- Low water pressure. Ensure the water pressure is above 2 bar.
