SMWD-CS

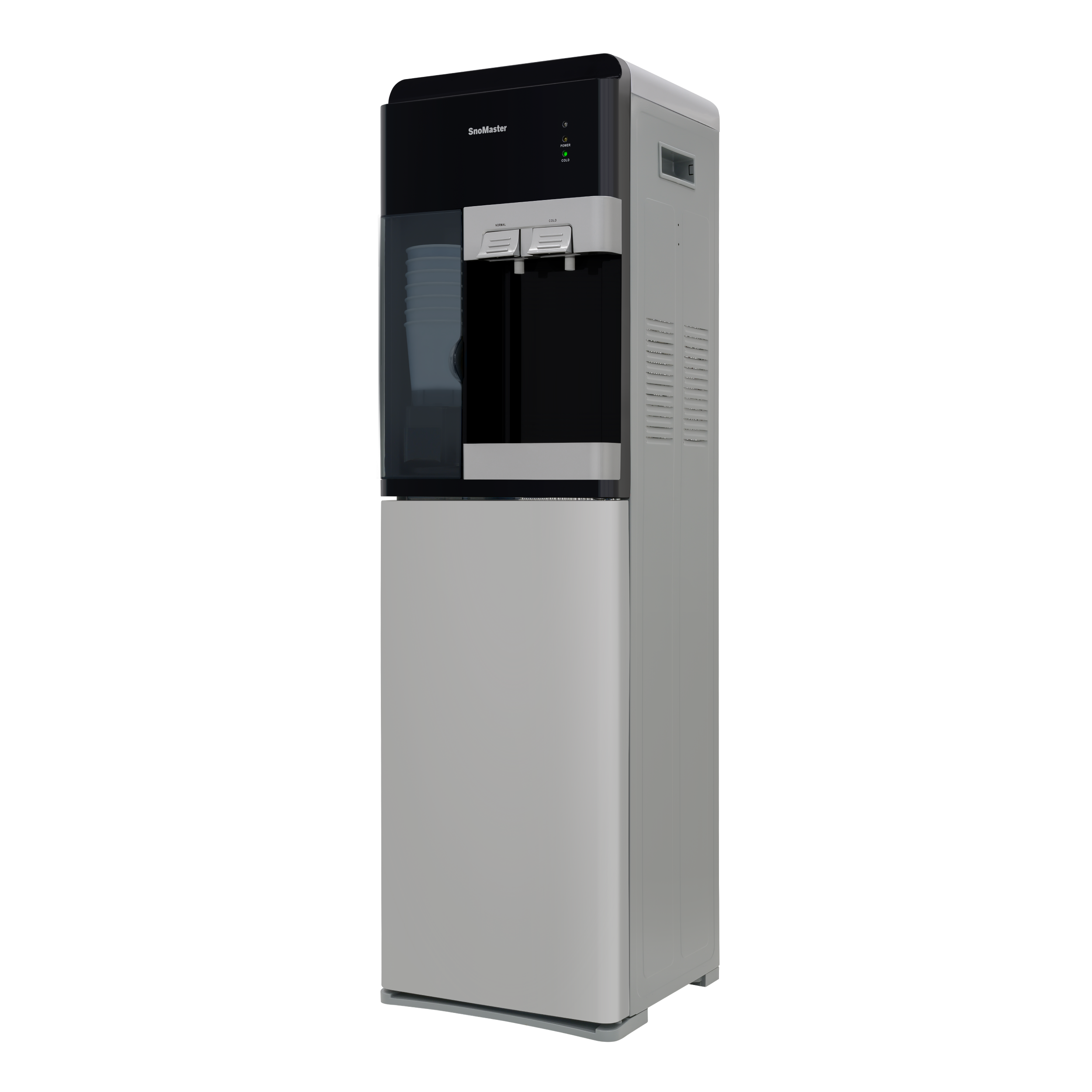

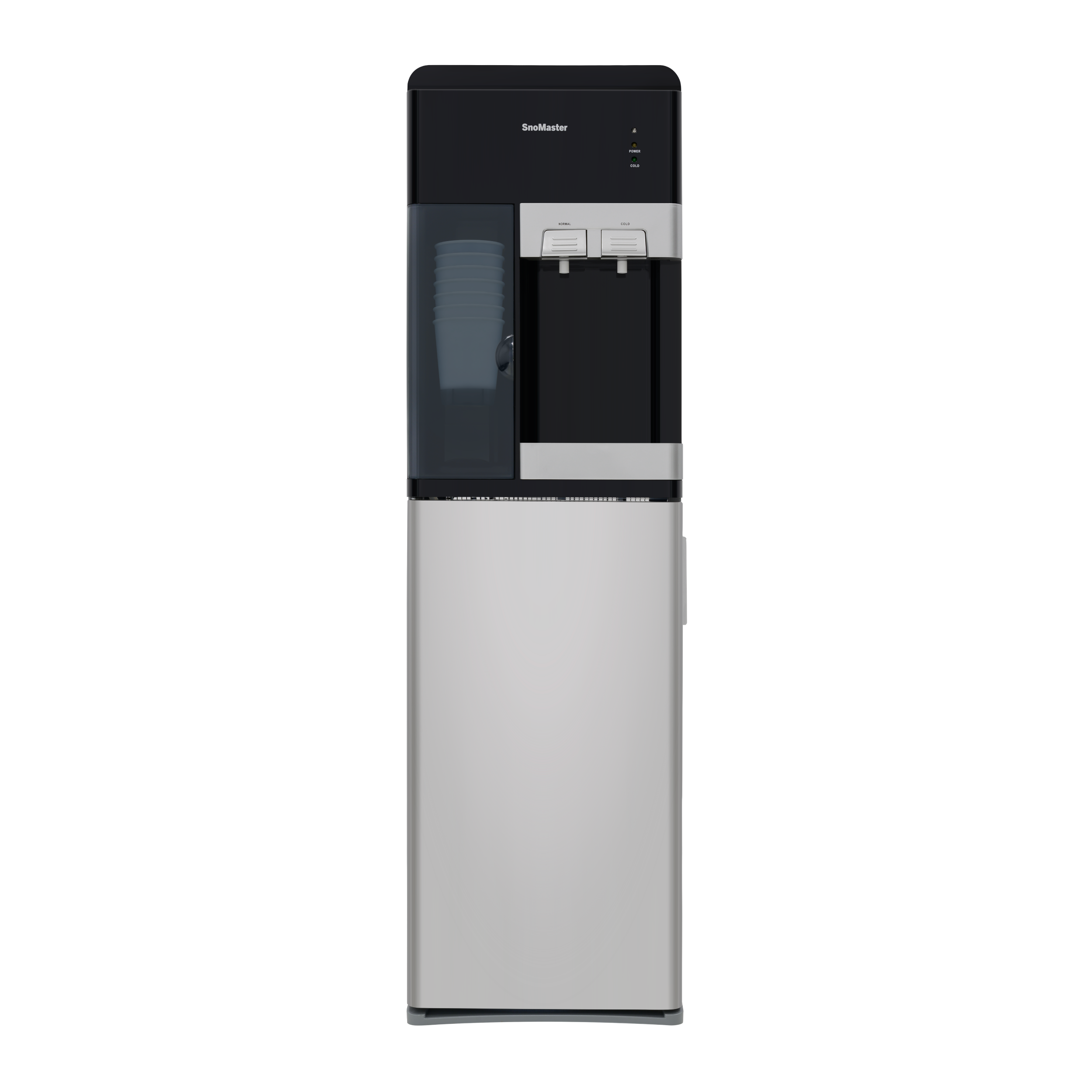

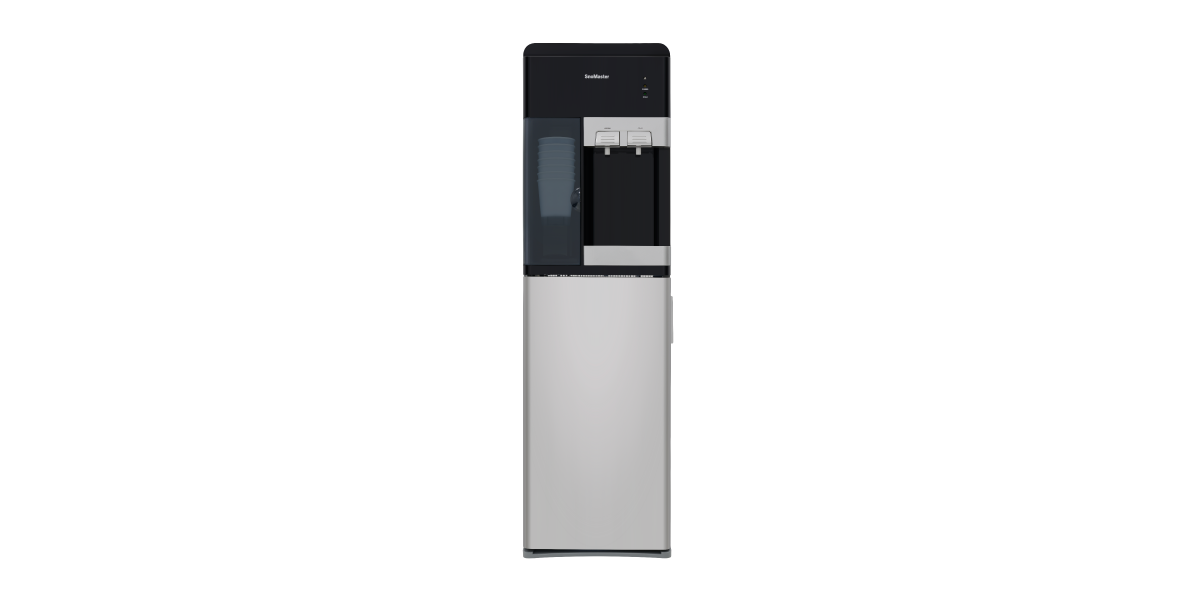

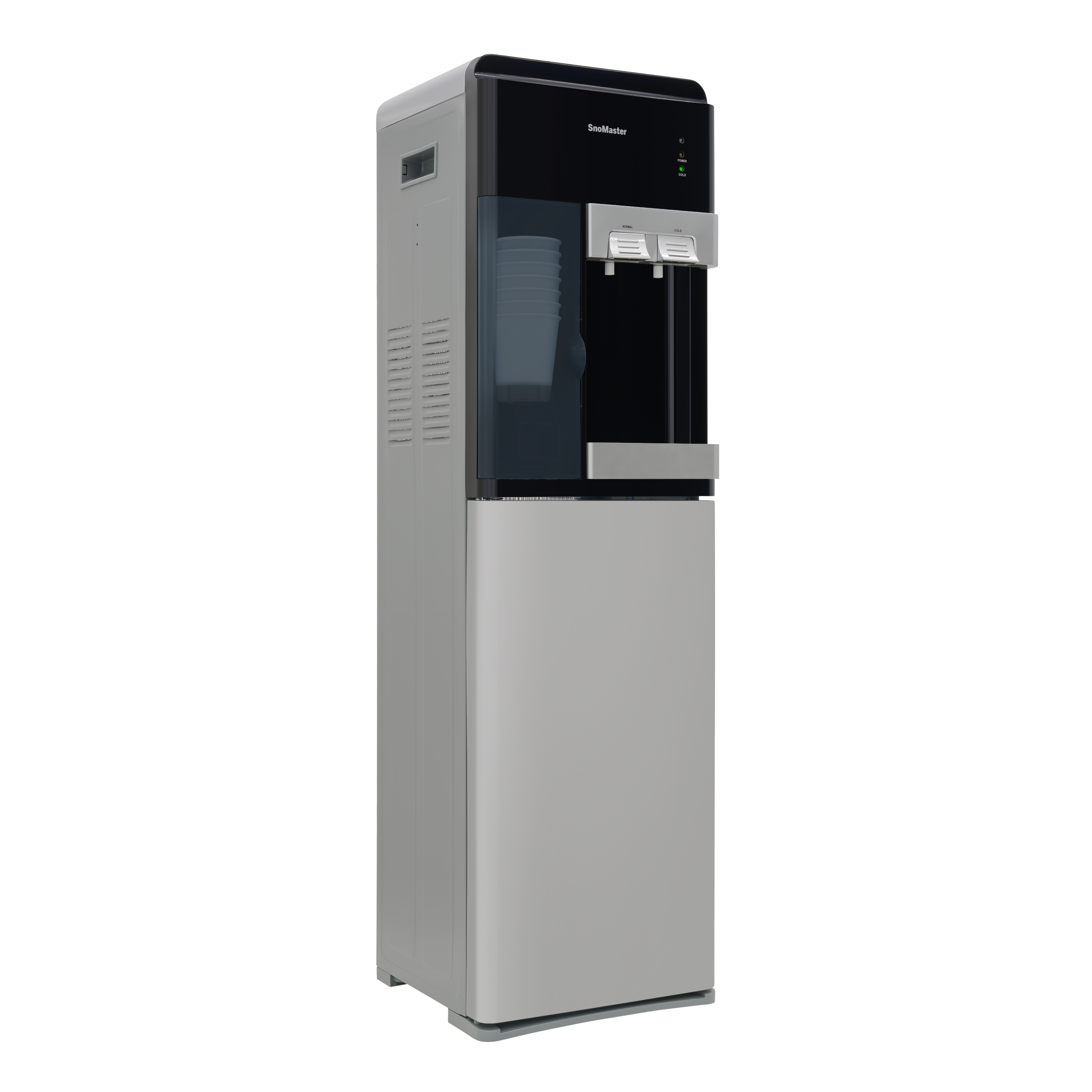

Enjoy refreshing chilled water with the SnoMaster – Bottom Fed Water Dispenser – Silver (SMWD-CS), designed for everyday convenience in kitchens, offices, reception areas, and shared workspaces. The bottom-loading design makes bottle replacement quick and effortless, while the compressor-driven cooling system delivers ambient and cold water on demand. Finished in a sleek silver design and built for African conditions, the SMWD-CS features easy-to-use dispensing levers, an external control panel with isolating switches, a drainage port, and includes a removable drip tray for added convenience.
Product Features:
Water Bottle Included
Drainage Port

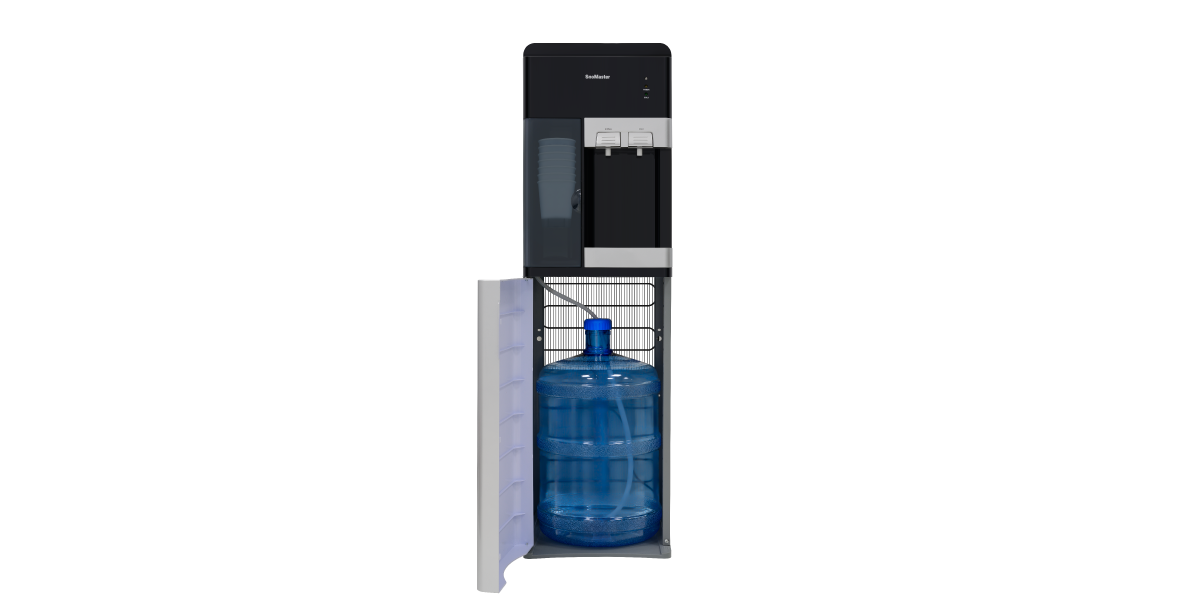

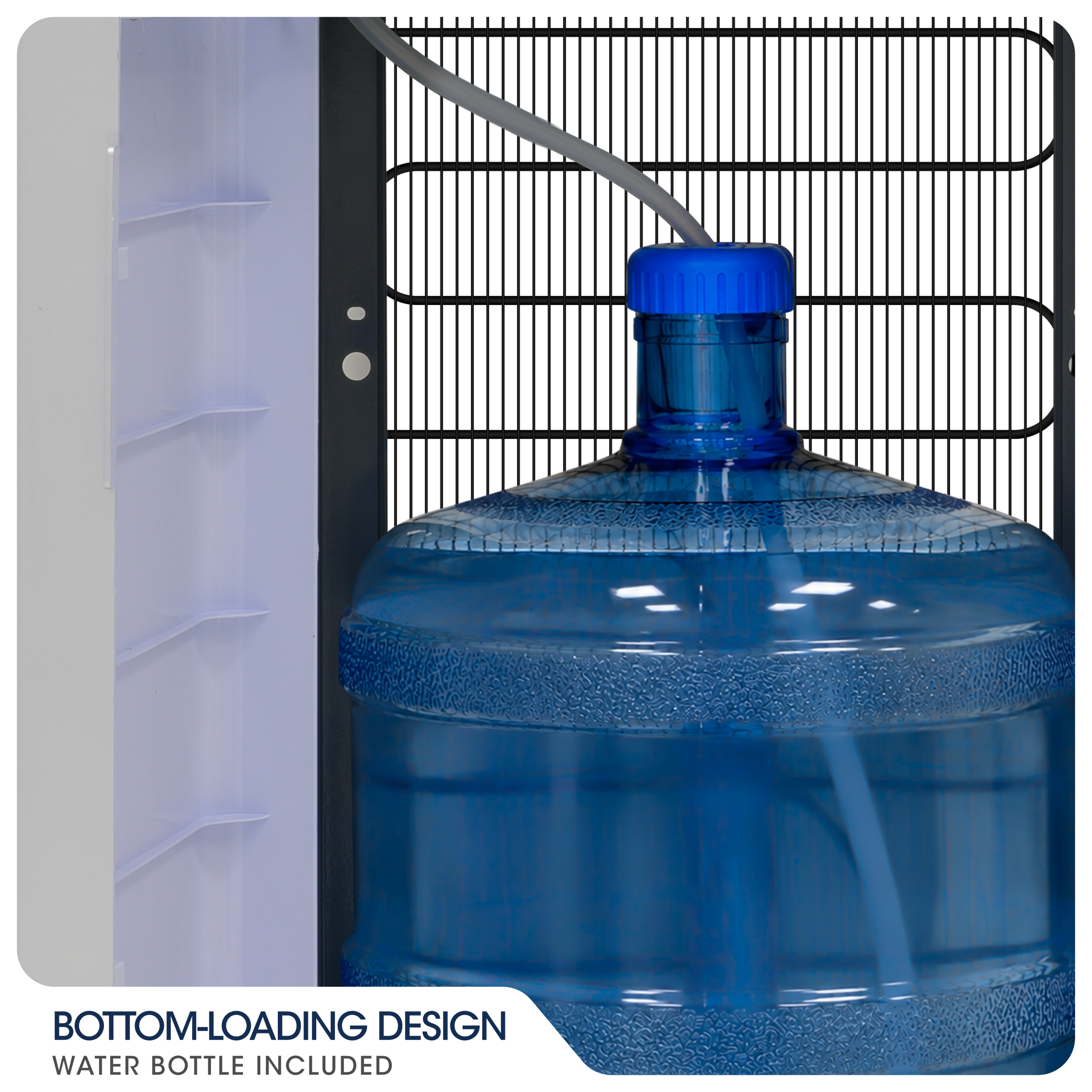

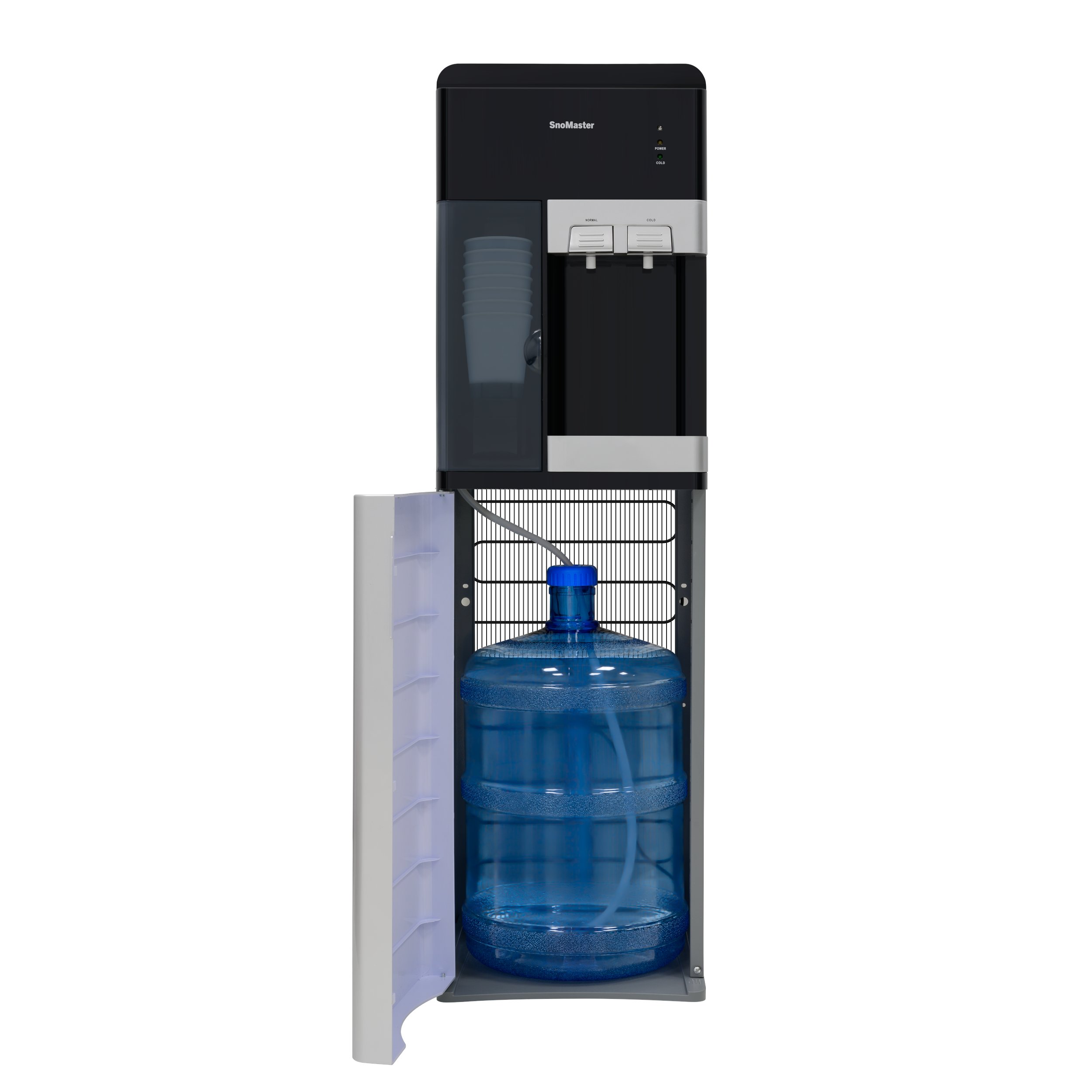

Bottom-Loading Design For Easy Bottle Replacement

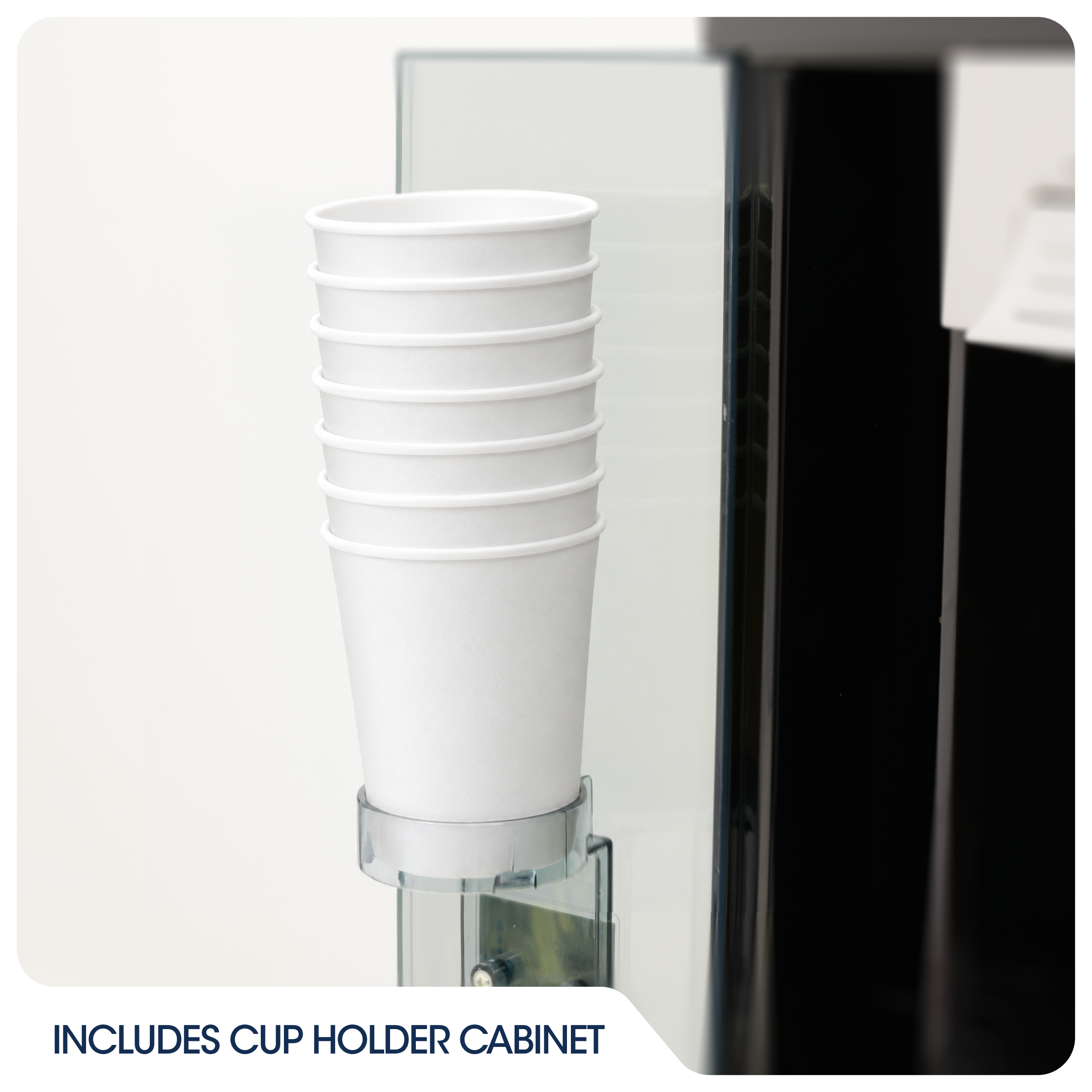

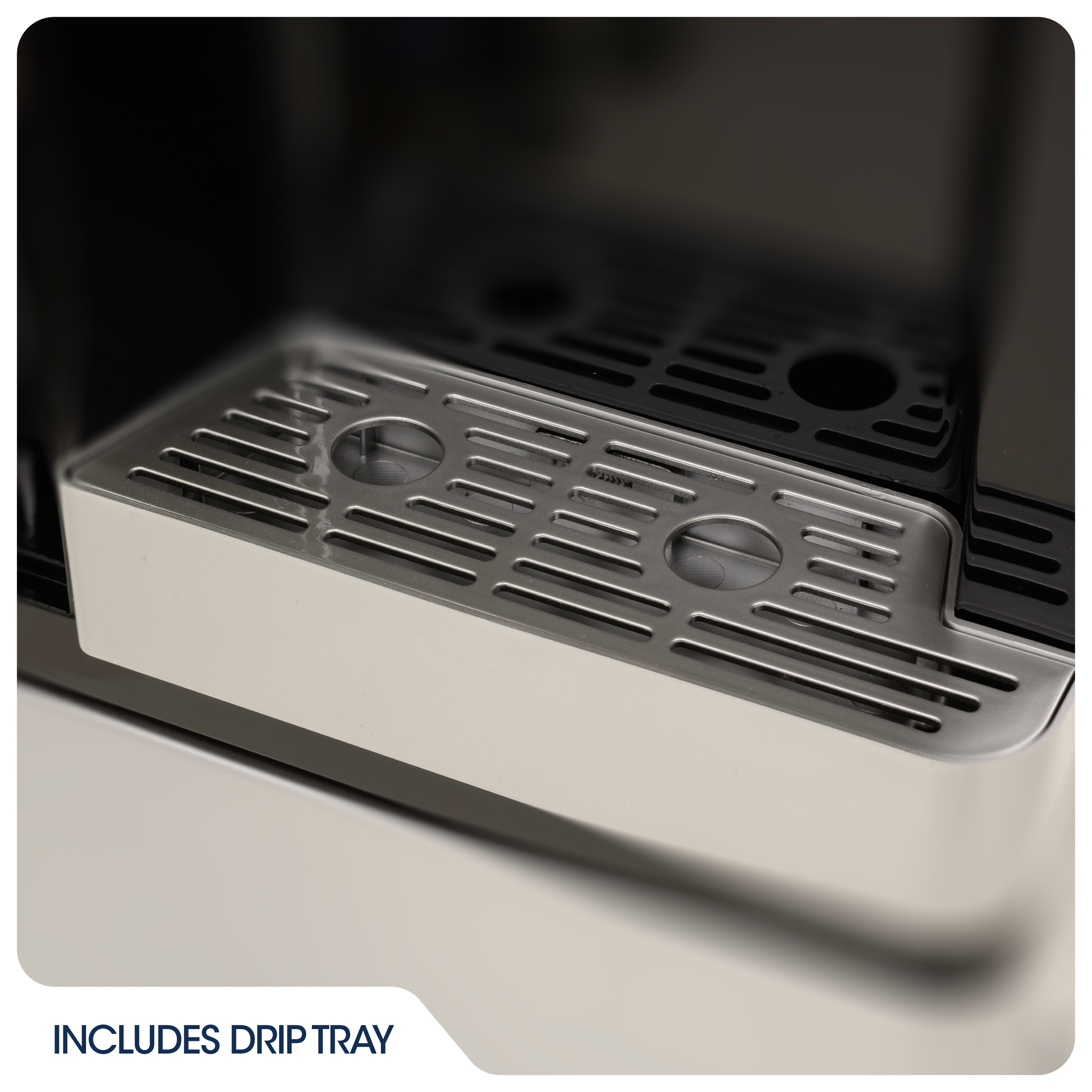

Includes Cup Holder Cabinet & Drip Tray
Compressor Driven Normal & Cold Water Dispenser

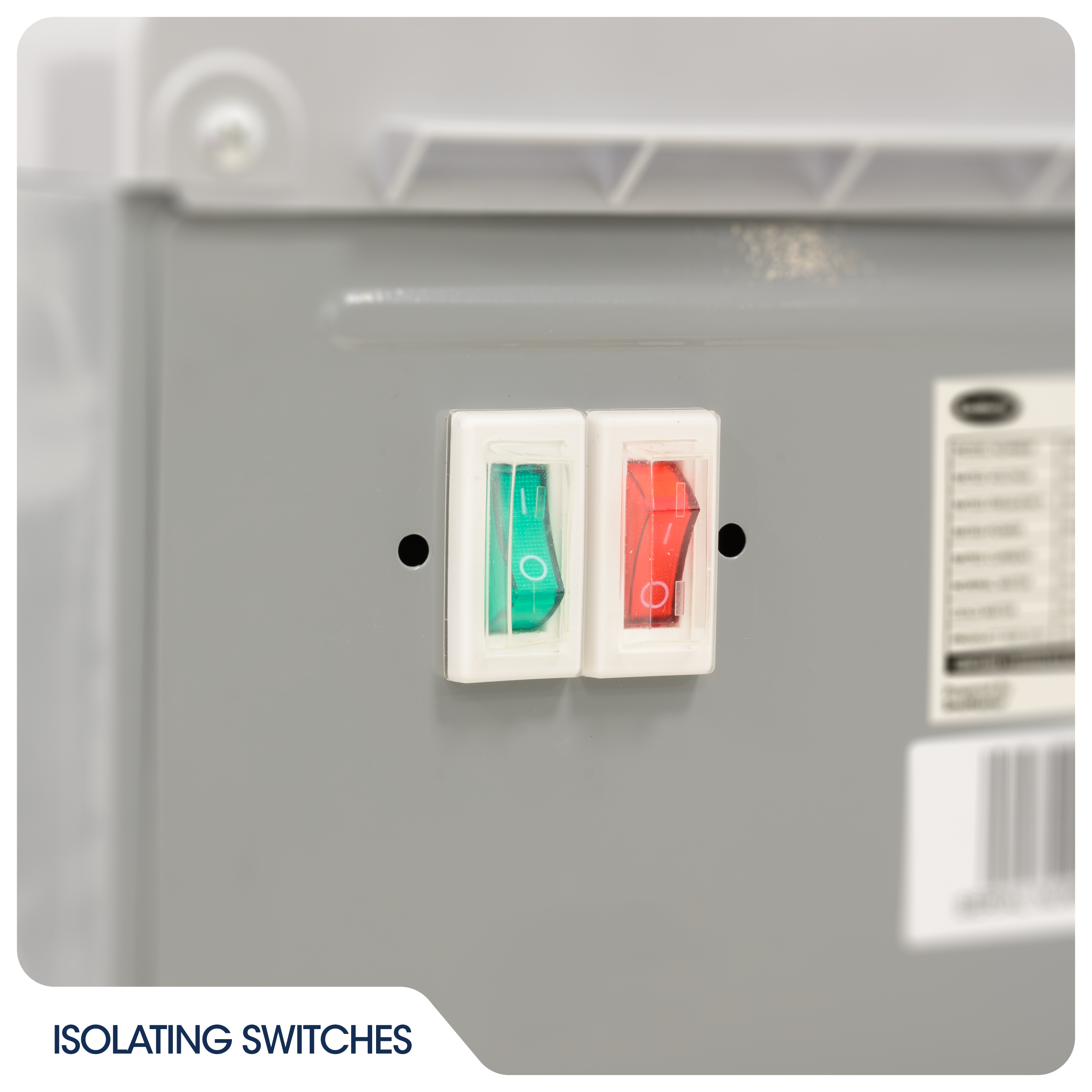

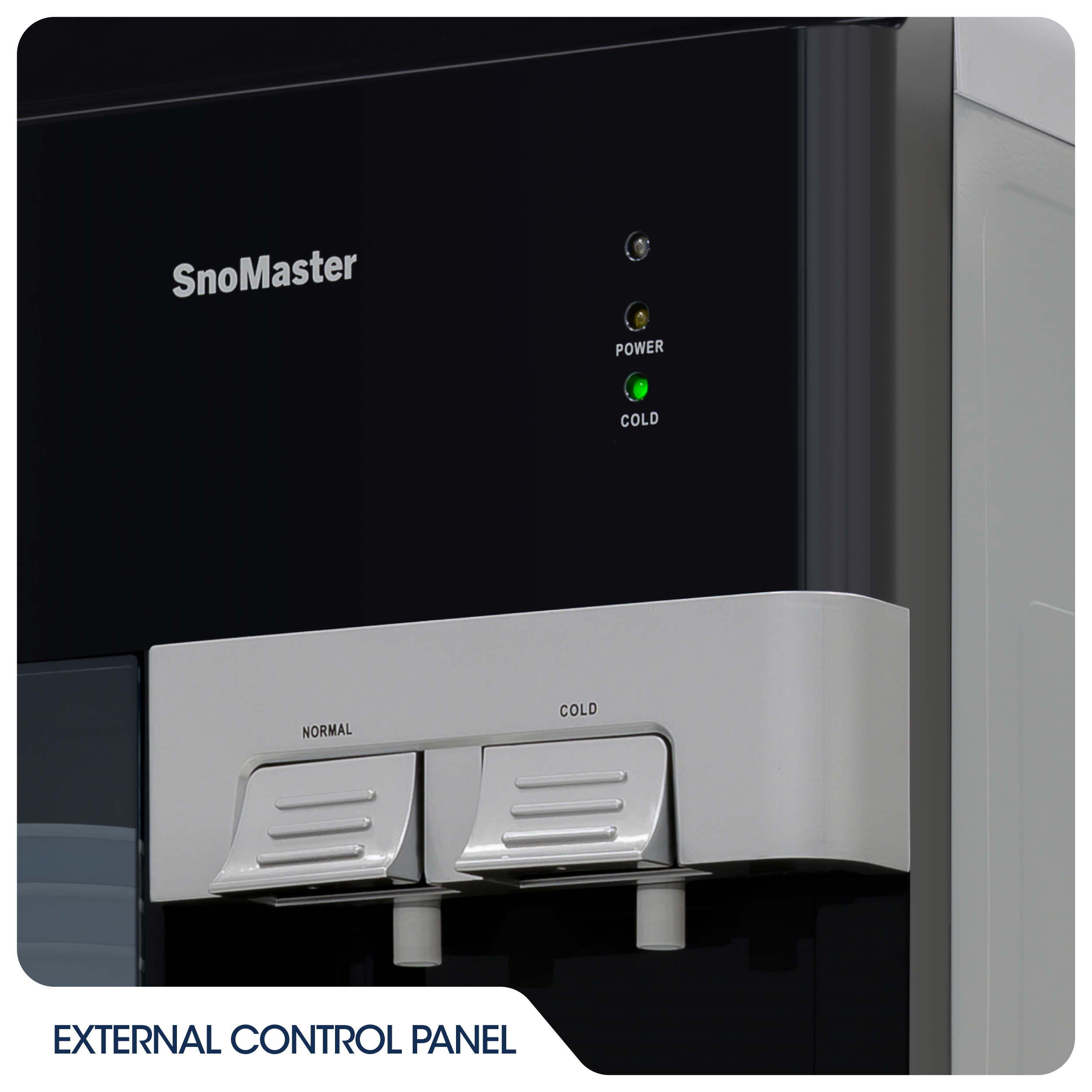

External Control Panel (On/Off Switch) + Isolating Switches

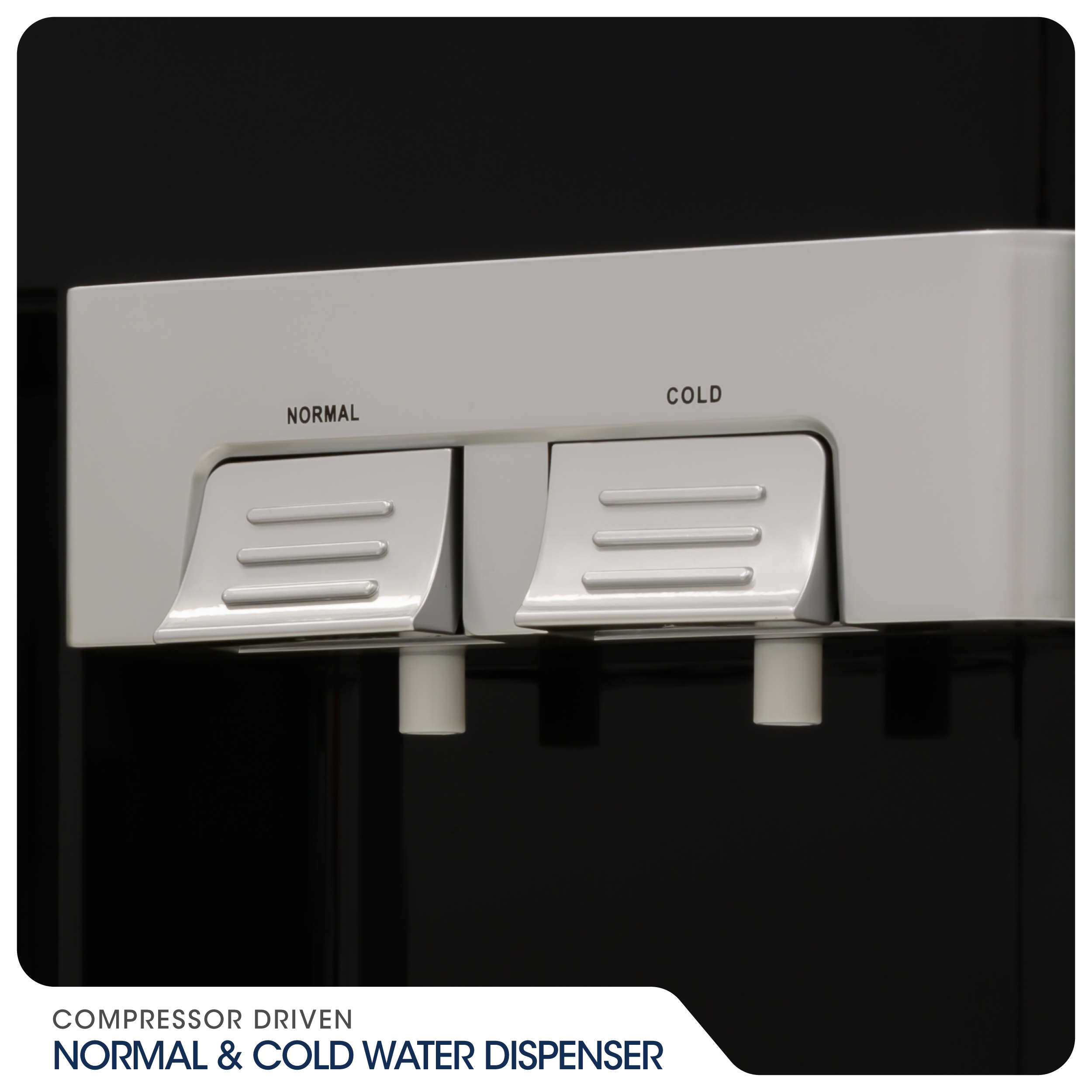

Normal And Cold Water Dispensing Levers
Specifications
-
Assembled Dimensions (mm): (H) 1068 (W) 310 (D) 310
-
Packaged Dimensions (mm): (H) 1120 (W) 330 (D) 330
-
Net Weight: 13.0Kg
-
Colour: Silver
-
Temperature Range: Cold Water: 2L/H (10℃) | Normal Water: 5L/H
-
Total Input Power: 80W
-
Rated Current: 0.7A
-
Voltage: 220-240V/50Hz
-
Includes: Water Bottle, Drip Tray & Cup Holder
-
Suggested Applications: Kitchens, Offices, Reception Areas, Gyms, Canteens, Waiting Rooms & Shared Workspaces
-
Design Criteria: Designed for African Conditions
Product Display
Product Media
Frequently Asked Questions
FAQ
Water is not cold
- Over consumption of water in short time; wait for a few minutes and try again.
- Check the power supply; ensure the switch at the back is turned on, or ensure the cable or power supply has not been damaged.
Water is not flowing from the taps
- Ensure the bottle is not empty; replace with new water bottle.
- Inlet of bottle supporter blocked by bottle seal; remove the bottle and clear any obstructions and reinstall the bottle.
Bottle supporter is leaking
- Check that the bottle has been installed correctly and that it is not damaged. You will need to replace the bottle if damaged.
Status indicator, red light is on
- Float switch may have failed. Check or replace the float switch
Status indicator, red light is flashing
- The cabinet door is not closed or the door switch has failed. Check the door is closed, check the door switch or replace the door switch.
