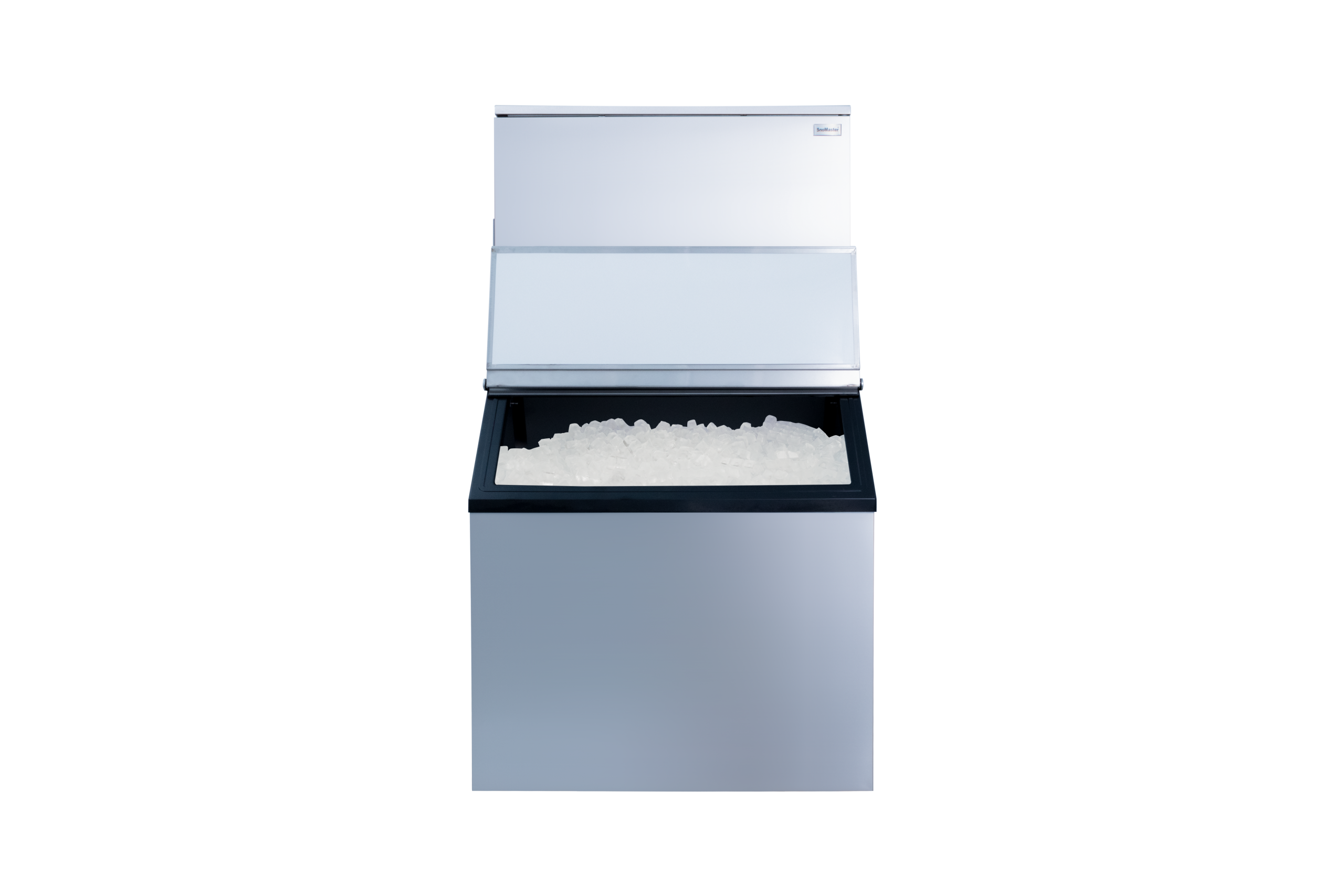

450Kg/24Hr Commercial Square Block Type Ice-Maker - Stainless Steel
Product Features:
Square Ice Size (mm): (H) 22 (W) 22 (D) 24
380 Square Ice Cubes Per Cycle
Internal LED Display With On/Off Switch
Ice Full Sensor & Water Low Sensor
Gravity-Fed Drain System
Ice Type: Square Ice
Designed For African Conditions
Recommended Product*
SMACC-010
Specifications
-
Dimensions (mm) Assembled: (H) 1500 (W) 795 (D) 895
-
Dimensions (mm) Packaged: (H) 1670 (W) 960 (D) 850
-
Storage Bin Volume: 160Kg
-
Rated Current: 16A
-
Net Weight: 102Kg + 60Kg
-
Ice Type: Square Ice
-
Ice Making Capacity: 450Kg/24Hr
-
Square Ice Size (mm): (H) 22 (W) 22 (D) 24
-
Voltage: 230V/50Hz
-
Total Input Power: 2400W
-
Design Criteria: Designed for African Conditions
-
Castor Wheels (mm): (H) 150
-
Suggested Application: Commercial Operation, Bar, Pub, Restaurant, Hotel
-
Note: We recommend a certified plumber installs your commercial ice-maker. These units have a gravity-fed drain point, thus the drain point must be lower than the ice-maker. Ensure to keep the unit well ventilated and clean the condenser regularly. *To maximize the ice-making performance of your commercial ice-maker, it’s ideal to have it in a steady environment with a 20°C ambient temperature and 10°C water temperature. While your ice-maker can handle higher temperatures, these conditions ensure peak production capacity. Adjustable Leveling Feet (+/- 150mm)
Product Display
Product Media
Frequently Asked Questions
FAQ
Why won’t my SnoMaster SM-450 Ice Maker turn on?
Possible Causes:
-
The unit is unplugged.
-
The power switch is off.
-
The fuse or circuit breaker has tripped.
-
The ice storage bin is full.
Solutions:
-
Plug the SM-450 into a working power outlet.
-
Turn on the power switch.
-
Check and reset the fuse or breaker.
-
Remove excess ice from the bin and restart the machine.
Why is no water entering my SM-450 Ice Maker after startup?
Possible Causes:
-
The water tap is closed.
-
The inlet pipe is loose or incorrectly connected.
-
Water pressure is too low or the inlet filter is blocked.
Solutions:
-
Turn on the water supply.
-
Reconnect or tighten the water inlet pipe.
-
Check that water pressure is between 2 – 4 bar and clean or replace the inlet filter.
Why is my SM-450 producing ice slowly or inconsistently?
Possible Causes:
-
The condenser is dirty or airflow is blocked.
-
Poor ventilation around the unit.
-
Ambient or water temperature is too high.
Solutions:
-
Clean the condenser regularly to maintain performance.
-
Ensure adequate ventilation space around the SM-450.
-
Relocate away from heat sources or direct sunlight.
Why are my SM-450 ice cubes small or misshapen?
Possible Causes:
-
Insufficient water supply or pressure.
-
Blocked water line or filter.
-
High incoming water temperature.
Solutions:
-
Inspect the water line for blockages or kinks.
-
Confirm water pressure is between 2 – 4 bar.
-
Use cooler incoming water for better formation.
Why is my SnoMaster SM-450 leaking water?
Possible Causes:
-
Drain pipe loose or not connected correctly.
-
Normal condensation on the cabinet surface.
-
Internal hose fitting is loose.
Solutions:
-
Tighten or reconnect the drain pipe securely.
-
Wipe away surface condensation.
-
Check internal hose connections and tighten as needed.
