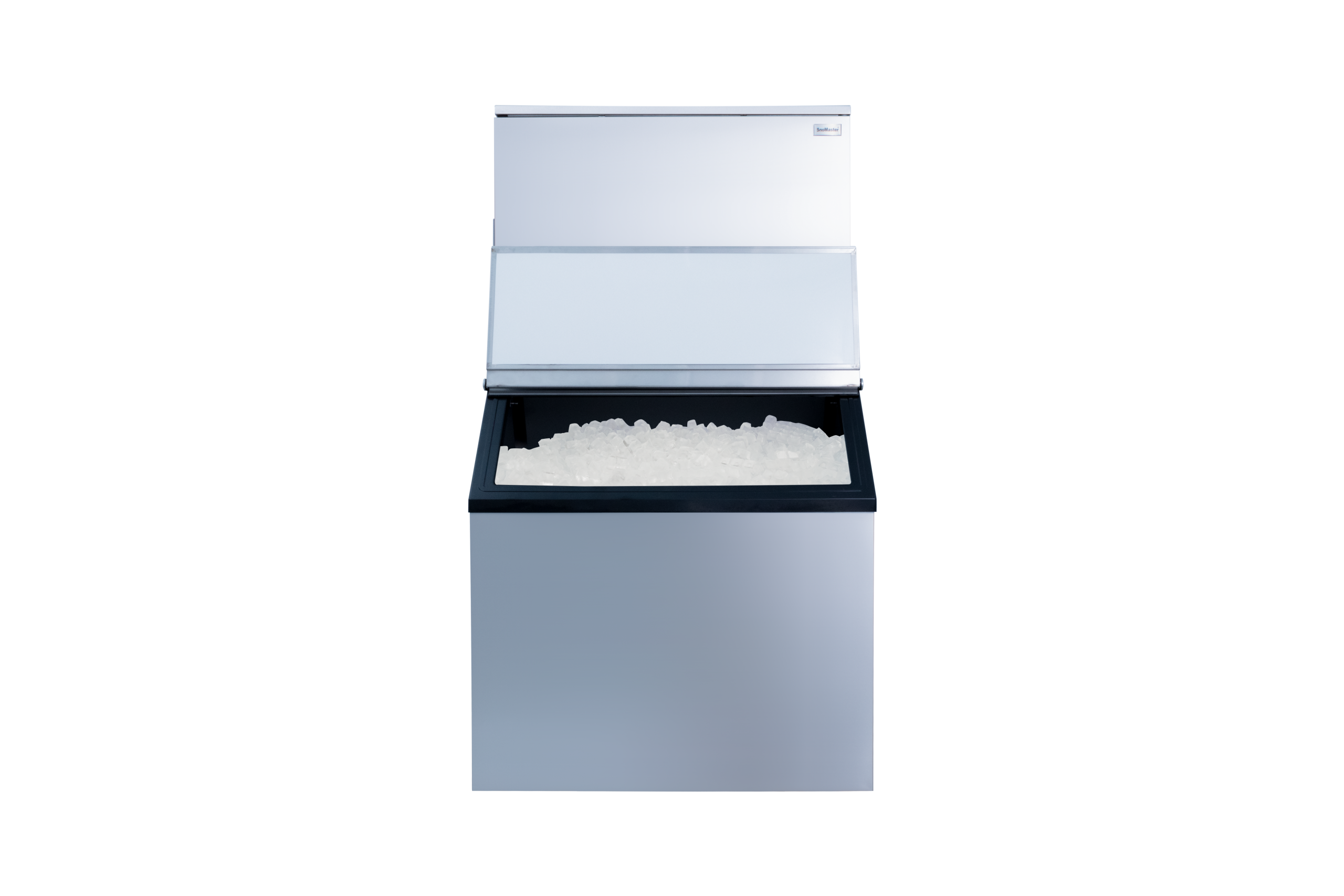

250Kg/24Hr Commercial Square Block Type Ice-Maker - Stainless Steel
Product Features:
Square Ice Size (mm): (H) 22 (W) 22 (D) 24
240 Square Ice Cubes Per Cycle
Internal LED Display With On/Off Switch
Ice Full Sensor & Water Low Sensor
Internal LED Display With On/Off Switch
Gravity-Fed Drain System
Includes: 160Kg Ice Storage Bin, Ice Scoop, Disposable Water Filter Cartridge, Inlet and Outlet Pipes
Recommended Product*
SMACC-010
Specifications
-
Dimensions (mm) Assembled: (H) 1495 (W) 760 (D) 865
-
Dimensions (mm) Packaged: (H) 1530 (W) 960 (D) 850
-
Storage Bin Volume: 160Kg
-
Rated Current: 7.5A
-
Net Weight: 75Kg + 60Kg
-
Ice Type: Square Ice
-
Ice making Capacity: 250Kg/24Hr
-
Square Ice Size (mm): (H) 22 (W) 22 (D) 24
-
Voltage: 220-240V/50Hz
-
Total Input Power: 1200W
-
Finishes: Stainless Steel
-
Castor Wheels (mm): (H) 150
-
Suggested Application: Restaurants, Bars, Hotels, Ice-Making Businesses, Commercial Kitchens & Conference Venues
-
Note: We recommend a certified plumber installs your commercial ice-maker. These units have a gravity-fed drain point, thus the drain point must be lower than the ice-maker. Ensure to keep the unit well ventilated and clean the condenser regularly. *To maximize the ice-making performance of your commercial ice-maker, it’s ideal to have it in a steady environment with a 20°C ambient temperature and 10°C water temperature. While your ice-maker can handle higher temperatures, these conditions ensure peak production capacity. Adjustable Leveling Feet (+/- 150mm)
Product Display
Product Media
Frequently Asked Questions
FAQ
Why won’t my SnoMaster SM-250 Ice Maker turn on?
Possible Causes:
-
The unit is unplugged.
-
The power switch is off.
-
The fuse or circuit breaker has tripped.
-
The ice-storage bin is full.
Solutions:
-
Plug the SM-250 into a working power outlet.
-
Switch on the unit at the control panel.
-
Check and reset the fuse or circuit breaker.
-
Remove excess ice from the storage bin and restart the machine.
Why is no water entering my SM-250 Ice Maker?
Possible Causes:
-
Water tap is closed.
-
Inlet pipe is loose or incorrectly connected.
-
Water pressure is too low or inlet filter is blocked.
Solutions:
-
Turn on the water supply.
-
Reconnect or tighten the inlet pipe securely.
-
Check water pressure (should be 2 – 4 Bar) and clean or replace the inlet filter.
Why is my SM-250 making ice slowly or inconsistently?
Possible Causes:
-
Condenser is dirty or airflow is blocked.
-
Poor ventilation around the machine.
-
Ambient or water temperature is too high.
Solutions:
-
Clean the condenser regularly to maintain efficiency.
-
Ensure the SM-250 has sufficient space for airflow.
-
Keep the unit away from direct sunlight or heat sources.
Why are my SM-250 ice cubes small or misshapen?
Possible Causes:
-
Insufficient water flow or pressure.
-
Blocked water line or filter.
-
Water temperature is too warm.
Solutions:
-
Inspect the water line for kinks or blockages.
-
Confirm correct water pressure between 2 – 4 Bar.
-
Use cooler incoming water to stabilise production.
Why is water leaking from my SnoMaster SM-250 Ice Maker?
Possible Causes:
-
Drain pipe is loose or not properly connected.
-
Condensation forming on the unit surface.
-
Internal hose connection is loose.
Solutions:
-
Tighten or reconnect the drain pipe securely.
-
Wipe away normal condensation from the exterior.
-
Inspect internal hose fittings and reseal if necessary.
